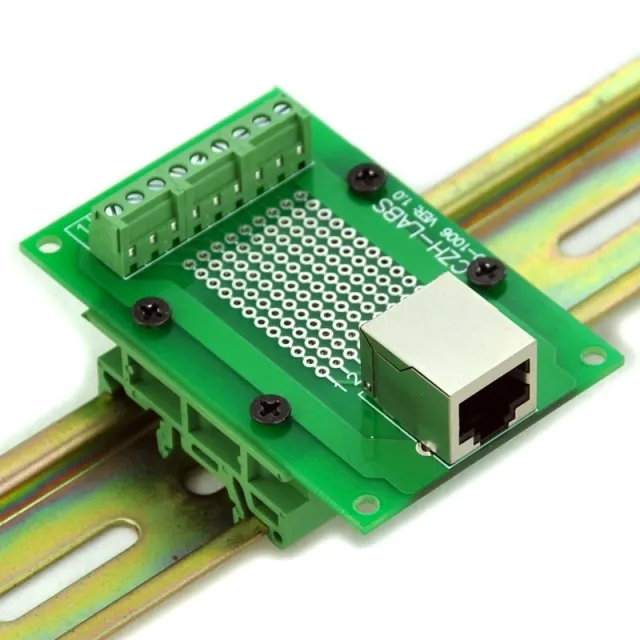

CZH-LABS RJ45 8P8C Interface Module with Simple DIN Rail Mounting feet, Right Angle Jack.

MD-D1006RS-1
CZH-LABS RJ45 8P8C Interface Module with Simple DIN Rail Mounting feet, Right Angle Jack.
Sold:133
Price:
Wholesale:
10-99
$8.99
100+
$7.99
SKU:
MD-D1006RS-1
Quantity:
-
+
(10000 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
  • Description
  • Reviews
RJ45 8P8C Jack Interface Module with Simple DIN Rail Mounting feet.

RJ45 right angle shielded 8P8C jack.
Pitch 3.81mm/0.15" screw terminal block.
Simple DIN Adapters (Feet): for width 35 / 32 / 15mm DIN rails.
Solder connection holes 12 per line, supports addition of 0.1" pin headers.
FR-4 fiber glass PCB, dual copper layers.
External dimensions: 72.5 x 49.5 x 35mm(W x L x H).
PCB dimensions: 72.5 x 47.35mm(W x L)
100% new, never used.

Rated voltage: 100V.
Rated current: 1A / per pin.
Operating Temperature: -20ºC to 50ºC

Terminal block specifications:
Wire range: 26 ~ 16AWG.
Strip length: 5mm.
Screws: M2, steel, Cr3+ Zn plated.
Pin header and Cage: Brass.
