ELECTRONICS-SALON 1PCS Double-Side Prototype PCB,Universal Board, 296x72mm.

PCB-D216-1
ELECTRONICS-SALON 1PCS Double-Side Prototype PCB,Universal Board, 296x72mm.
Sold:2
Have a question?
Price:
USD
$11.99
Wholesale:
10-99
$7.00
100+
$6.30
SKU:
PCB-D216-1
Quantity:
-
+
(10000 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Please select the information you wantX
Add to Favorite Items
  • Description
  • Reviews

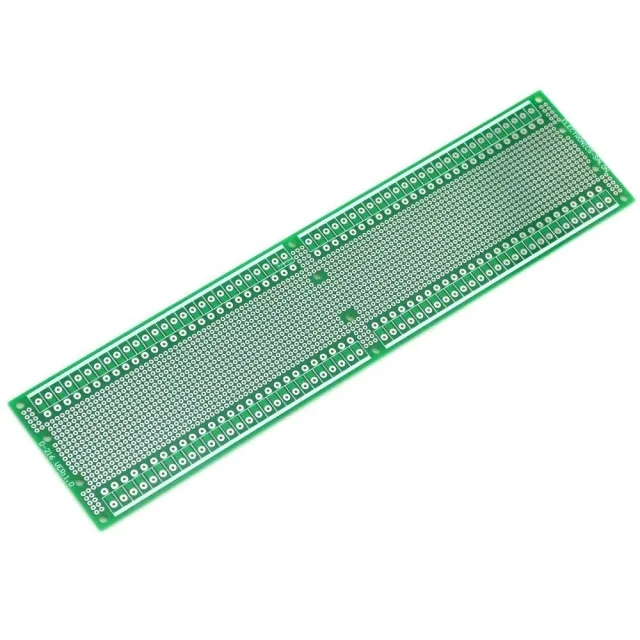

Double-Side Prototype Board.
Quantity: a lot of 1 piece.
Dimension: 296 x 72mm / 11.65" x 2.83"
PCB Thickness: 1.6mm
Material: FR-4 (glass fiber)
All holes are plated through
Top and bottom side are identical copper layers.

01~54 and A1~F9 connectors position pitch 5.0mm/0.197", hole diameter 1.3mm, mount pitch 5.0mm/0.197" terminal blocks are appropriate.
Other pads grid (pitch) 2.54mm / 0.1", hole diameter 0.9mm.
